Lilliput Q17 - 17.3" 12G-SDI Broadcast/Production Monitor
1 Year Warranty
UK Stock - deliverable in 2-3 business days

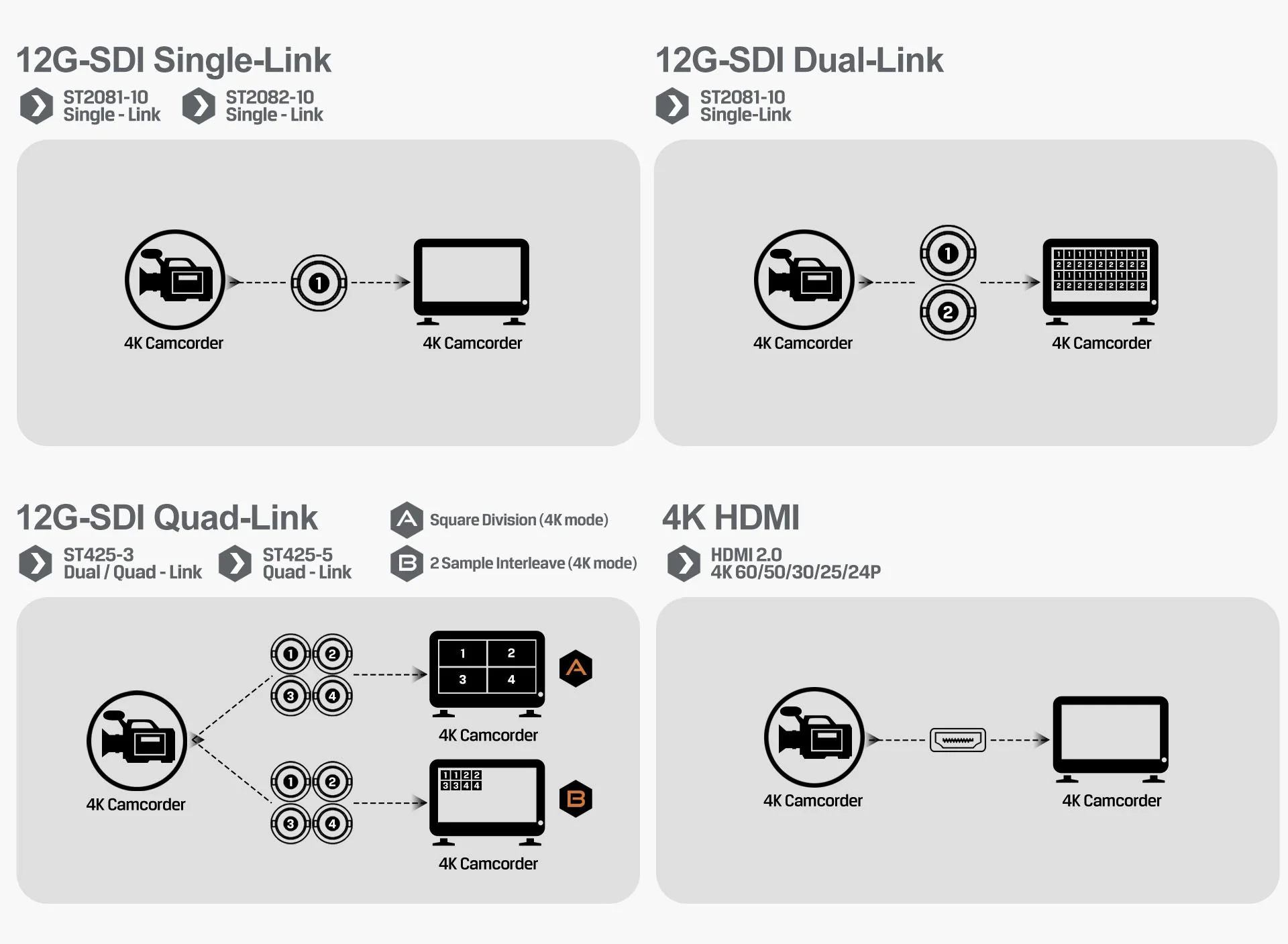

Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096×2160 (60p, 50p, 30p, 25p, 24p) & 3840×2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The colour calibration of Q17 model are including colour spaces (SMPTE_C, Rec709 and EBU) and colour temperature(3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications. The interfaces of RS422 in and RS422 out can realise synchronisation control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.
Key Specs:
- Model: Q17
- Display: 17.3 inch, 1920×1080, 300nits

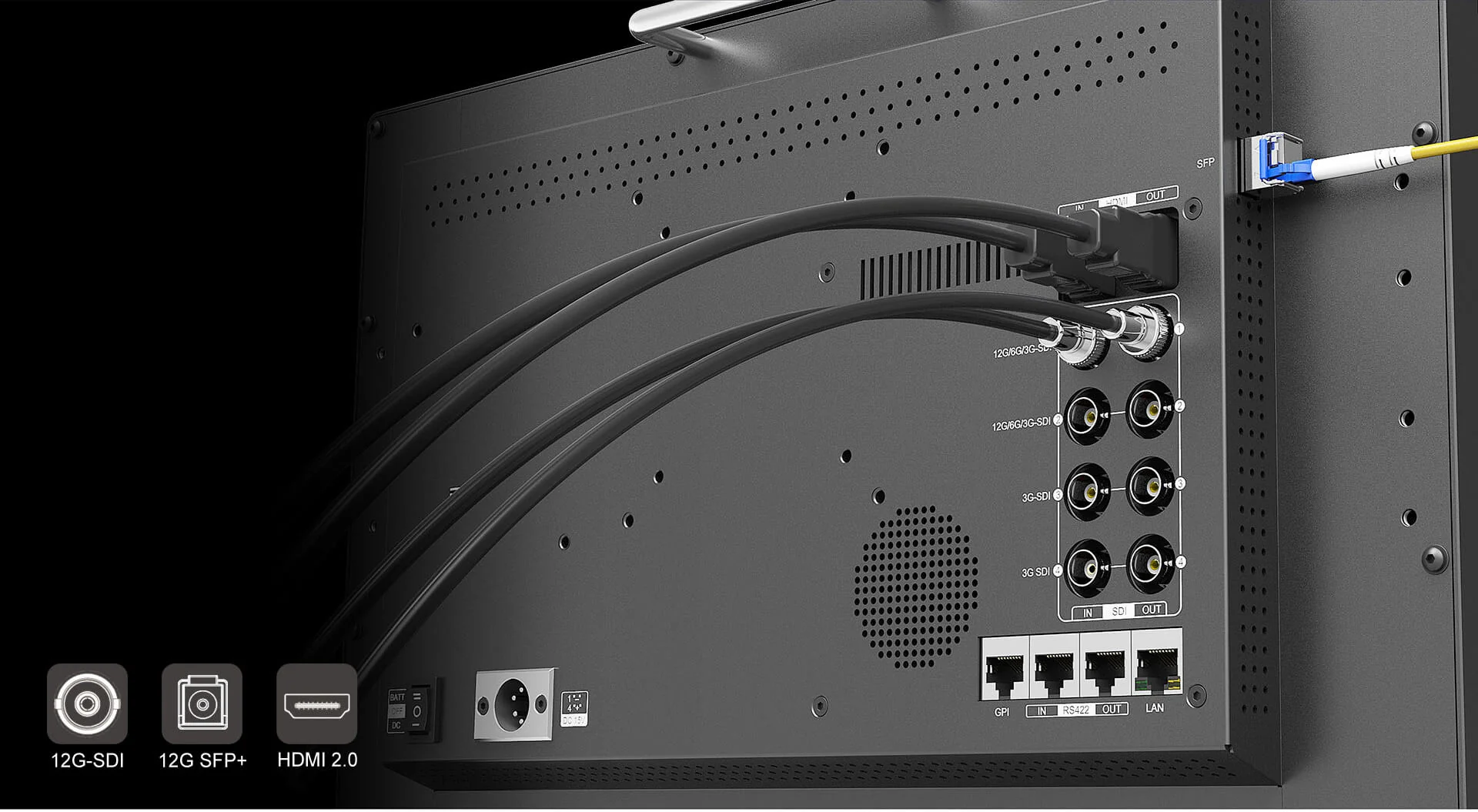

- Input: 2×12G-SDI, 2×3G-SDI, 12G SFP, HDMI 2.0
- Output: 2×12G-SDI, 2×3G-SDI, HDMI 2.0
- Control interfaces: LAN in, GPI in, RS422 In & out

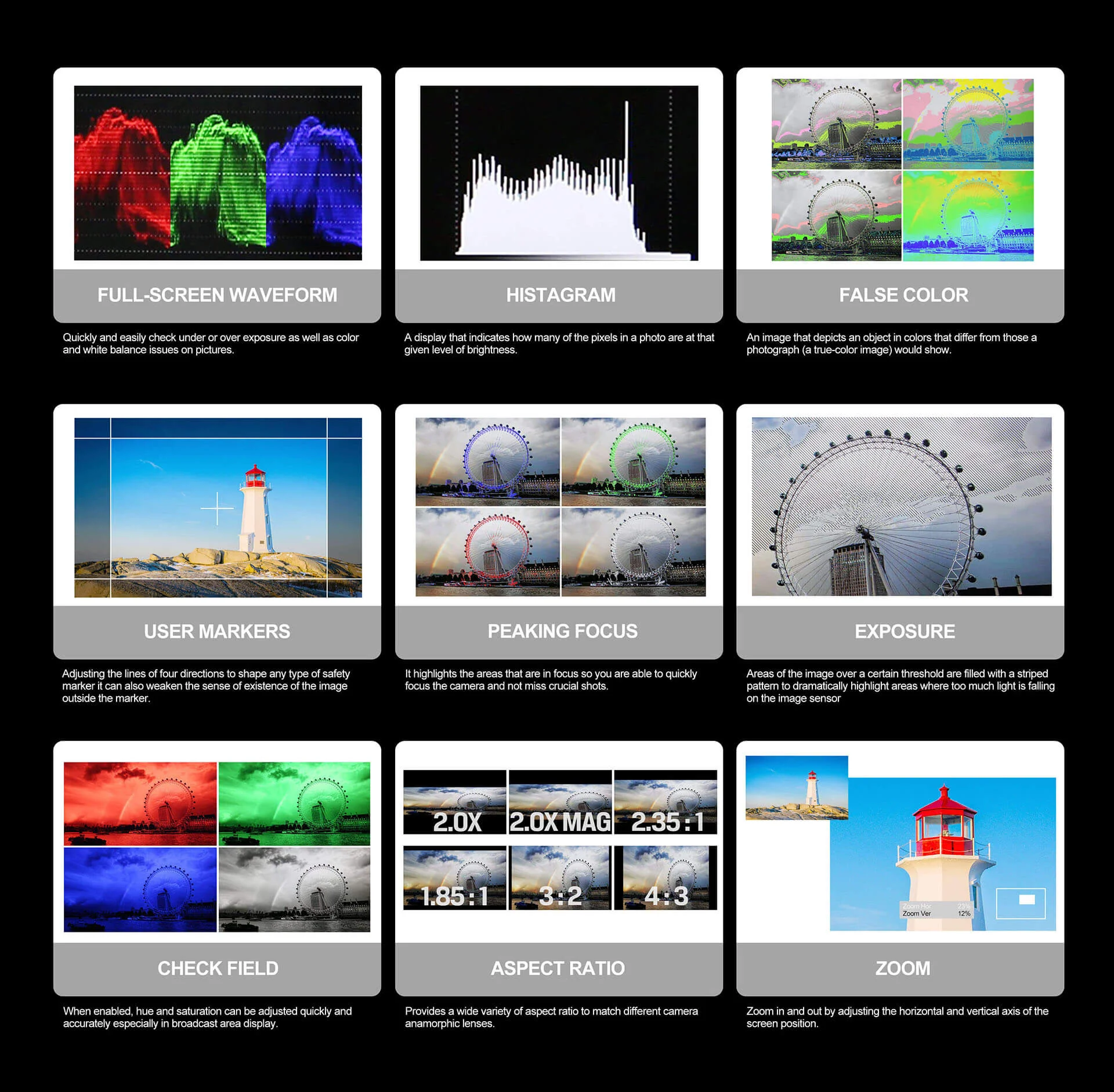

- Feature: 3D-LUT, HDR, Remote terminal
Accessories:
More Images
Lilliput Q17 - 17.3" 12G-SDI Broadcast/Production Monitor
1 Year Warranty
UK Stock - deliverable in 2-3 business days
Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096×2160 (60p, 50p, 30p, 25p, 24p) & 3840×2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The colour calibration of Q17 model are including colour spaces (SMPTE_C, Rec709 and EBU) and colour temperature(3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications. The interfaces of RS422 in and RS422 out can realise synchronisation control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.
Key Specs:
- Model: Q17
- Display: 17.3 inch, 1920×1080, 300nits
- Input: 2×12G-SDI, 2×3G-SDI, 12G SFP, HDMI 2.0
- Output: 2×12G-SDI, 2×3G-SDI, HDMI 2.0
- Control interfaces: LAN in, GPI in, RS422 In & out
- Feature: 3D-LUT, HDR, Remote terminal
Accessories:
